Newport Jr.

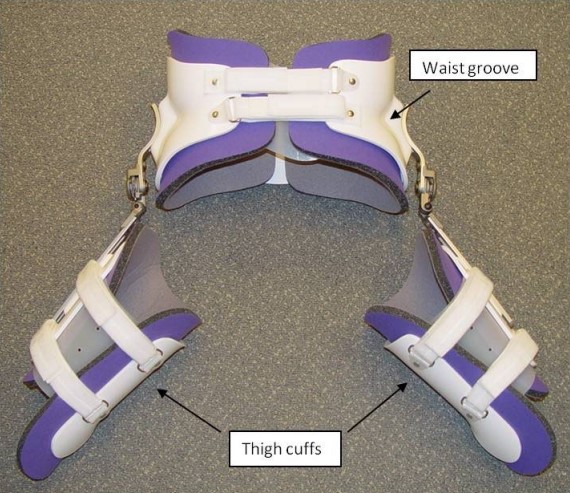

Hip abduction orthosis

  • Español PDF

Putting the brace on

  1. Put a clean, dry, cotton t-shirt on your child. Put a clean stockinette or thin cotton leggings on your child.
  2. Lay your child into the pelvic section of the brace. The waist grooves in the brace should sit between your child’s hips and ribs.
  3. Tighten the pelvic section straps, making sure that they are fairly snug.
  4. Gently place your child’s thighs into the thigh cuffs. Each thigh cuff should rest on the back of your child’s thigh. Your child should be able to bend their knees.
  5. Tighten all cuff straps, making sure that each one is snug.Newport Jr. Hip abduction orthosis

Wearing schedule

  • Wear the brace as prescribed by your doctor.
  • For the first couple of days, remove brace every 2 hours to check your child's skin.
  • When sleeping, support your child's legs with pillows or blankets to prevent excessive pressure from the brace.

Cleaning instructions

  • Have your child wear a clean t-shirt and leggings or snug pajamas under the brace to protect the skin.
  • Clean skin daily to prevent skin irritation.
  • Take your child out of the brace for bathing and diaper changes.
  • Surface clean the brace with rubbing alcohol.
  • Liners can be removed for cleaning. Hand wash with mild soap and water and lay flat to dry.
  • Extra set of liners is provided with each brace.

Skin checks

  • Check your child's skin daily for irritation.
  • Your child should not develop blisters, sores, or rashes under the brace.
  • Red marks from the edges and straps of the brace should fade in about 30 minutes.

Call Prosthetics and Orthotics at 206-987-8448:

  • With any brace related problems including lost or loose screws and worn-out straps
  • Any skin problems including blisters, sores, or rashes
  • For growth adjustments

To Learn More

  • Orthotics and Prosthetics
    206-987-8448
  • Ask your child’s healthcare provider
  • seattlechildrens.org/patient-education

Free Interpreter Services

  • In the hospital, ask your nurse.
  • From outside the hospital, call the toll-free Family Interpreting Line, 1-866-583-1527. Tell the interpreter the name or extension you need.
Seattle Children's Hospital

Seattle Children’s offers free interpreter services for patients, family members and legal representatives who are deaf or hard of hearing or speak a language other than English. Seattle Children’s will make this information available in alternate formats upon request. Call the Family Resource Center at 206-987-2201. This handout has been reviewed by clinical staff at Seattle Children’s. However, your needs are unique. Before you act or rely upon this information, please talk with your healthcare provider.

© 2026 Seattle Children’s, Seattle, Washington. All rights reserved.

02/01/2026
PE1585
